Braided metal hose

Material: 304/316/316L stainless steel- standard

Optional materials-special order 316LSS

Main body: Helically corrugated metal hose /Annular corrugated metal hose

Reinforcement: Can be single or multiple braided by stainless steel wire.

Characteristics: Thin wall, extremely flexible hose, manufactured in long continous lengths without segmenting.

Standards: GB-T14525-2010


Braided metal hoseBraided metal hose

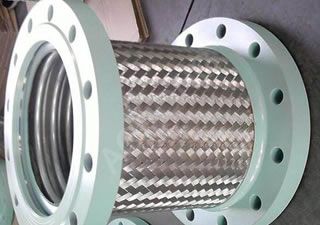

Structure pictureReal product picture

Specification:

Normal Size

Inner Diameter

Outer Diameter (mm)

Min Bend Radius(mm)

Pessure Applicable(MPa)

weight(kg/m)

inch

mm

Main Body

Single
Braid

Single
Braid

Dynamic State

Single
Braid

Double
Braid

Main Body

Single
Braid

1/2"

14

20

22

62

120

7.5

12.5

0.21

0.4

5/8"

16

23

25

80

150

6.4

10

0.26

0.5

3/4"

20

28

30

100

180

5

8

0.35

0.6

1"

25

35

37

120

280

4

7.5

0.47

0.85

1 1/4"

32

43

45

140

340

3.5

6.4

0.51

0.96

1 1/2"

40

51

53

180

450

3

5.6

0.7

1.1

2"

50

62

64

220

550

2.5

4

0.85

1.75

2 1/2"

65

79

82

280

650

2

4

1.41

2.7

3"

80

97

100

350

800

2

3.2

1.62

3.12

4"

100

122

125

400

1000

1.6

2.5

2

3.7

5"

125

151

155

500

1200

1.5

2.5

2.8

5

6"

150

180

184

600

1500

1.5

2.5

3.8

6.6

7"

175

210

215

700

1750

1.2

2

5.8

9.7

8"

200

240

245

800

2000

1.2

2

6.7

12

10"

250

298

303

1000

2200

1

1.6

10.6

18.1

12"

300

360

365

1200

2500

1

1.6

17.1

31.4

14"

350

410

415

1400

3000

0.8

1.6

20

36.3

16"

400

460

465

1600

3500

0.6

1.2

22.8

41.1





*

*

*

*
