Oxygen/Acetylene welding Hose
Other name: Welding hose, Oxygen welding hoses, Flexible Reinforced oxygen Hoses, Reinforced oxygen tubing, Rubber oxygen pipe line, Acetylene Rubber Hose, Acetylene welding Hose.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Blue or red, smooth (streaky finish) synthetic rubber, abrasion, weather and abrasion resistant.
Application: Suitable for welding and cutting equipment to transport oxygen/acetylene.

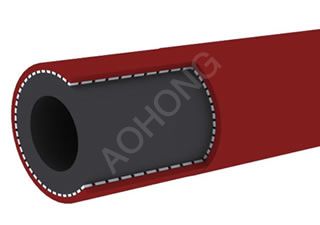

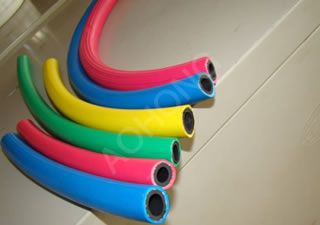

Working Temperature: -35℃ to 90℃. | | |  |  | | Structure picture | Real product picture | | | |
Specification:| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | | MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL | | 5 | 3/16" | 12 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.13 | 100±1% | | 6 | 1/4" | 13 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.15 | 100±1% | | 8 | 5/16" | 15 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.23 | 100±1% | | 10 | 3/8" | 17 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.26 | 100±1% | | 13 | 1/2" | 22 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.36 | 100±1% | | 16 | 5/8" | 25 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.53 | 100±1% | | 19 | 3/4" | 29 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.64 | 100±1% | | 25 | 1" | 36 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.85 | 100±1% |
|
