PVC Spiral Steel Wire Reinforced Hose

Other name: PVC steel suction hoses, Steel Spiral Reinforced PVC Suction Hoses, Water suction hoses with steel wire, PVC Suction and discharge hoses, Steel reinforced PVC hoses.
Wall: high quality special PVC material
Reinforcement: Steel spiral
Application: very ideally for conveying water, oil and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Working Temperature: -10°C To +65°C (14°F To +150°F)


PVC Spiral Steel Wire Reinforced Hose PVC Spiral Steel Wire Reinforced Hose

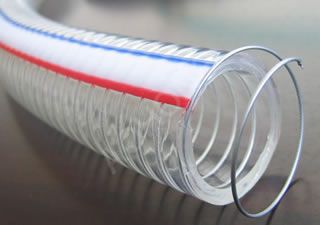

Structure pictureReal product picture

Specification:

I.D.

O.D.

Length

W.P.

B.P.

Weight

packing size

Volume

inch

mm

mm

m/roll

MPa

MPa

kg/m

dia.

High

m3

3/4“

20

24.6±0.2

50

0.5

1.5

0.25

650

180

0.076

20

25.4±0.2

50

0.5

1.5

0.3

650

180

0.076

1”

25

29±0.2

50

0.5

1.5

0.25

650

200

0.085

25

29.4±0.2

50

0.5

1.5

0.3

650

200

0.085

25

31.6±0.2

50

0.5

1.5

0.4

650

210

0.089

25

31.8±0.2

50

0.5

1.5

0.5

650

210

0.089

1.1/4“

32

36.6 ±0.2

50

0.5

1.5

0.4

750

220

0.129

32

37±0.2

50

0.5

1.5

0.5

750

230

0.129

32

40.2±0.2

50

0.4

1.1

0.65

750

260

0.166

1.1/2”

38

42±0.2

50

0.4

1.1

0.4

850

310

0.224

38

42.8±0.2

50

0.4

1.1

0.5

850

310

0.224

38

44.6±0.2

50

0.4

1.1

0.7

850

310

0.224

38

46±0.2

50

0.4

1.1

0.9

850

320

0.231

1.3/4“

45

52.8±0.2

50

0.4

1.1

0.8

900

300

0.243

45

53±0.2

50

0.4

1.1

1

950

300

0.271

1.7/8”

48

57.8±0.2

50

0.4

1.1

1.1

950

320

0.289

2“

50

56±0.2

50

0.4

1.1

0.7

980

320

0.307

50

56.4±0.2

50

0.4

1.1

0.8

980

320

0.307

50

56.8±0.2

50

0.4

1.1

0.9

980

320

0.307

50

57±0.2

50

0.4

1.1

1

980

320

0.307

50

58±0.2

50

0.4

1.1

1.1

1000

310

0.31

50

59.6±0.2

50

0.4

1.1

1.2

1000

310

0.31

2.1/2”

64

70±0.2

30

0.4

1.1

1.2

1050

300

0.331

64

72.4±0.2

30

0.4

1.1

1.4

1050

300

0.331

64

73.5±0.2

30

0.4

1.1

1.6

1050

300

0.331

64

74±0.2

30

0.4

1.1

1.8

1050

300

0.331

3“

75

81.8±0.2

30

0.3

0.8

1.4

1050

340

0.375

75

82.4±0.2

30

0.3

0.8

1.6

1050

340

0.375

75

83.6±0.2

30

0.3

0.8

1.8

1050

340

0.375

75

85±0.2

30

0.3

0.8

2

1130

330

0.421

75

85.8±0.2

30

0.3

0.8

2.2

1150

350

0.463

3.1/2”

89

100±0.2

30

0.3

0.8

2.5

1250

350

0.547

4“

102

110±0.2

30

0.3

0.8

2.5

1250

450

0.703

102

110.8±0.2

30

0.3

0.8

2.7

1180

430

0.599

102

112±0.2

30

0.3

0.8

3

1180

430

0.599

102

114.2±0.2

30

0.3

0.8

3.5

1180

440

0.613

102

114.6±0.2

30

0.3

0.8

4

1180

450

0.627

102

121.6±0.2

30

0.3

0.8

5

1180

460

0.641

108

118±0.2

30

0.3

0.8

3.2

1180

470

0.615

108

120±0.2

30

0.3

0.8

3.5

1180

480

0.616

5"

127

141±0.2

20

0.2

0.6

5

1440

430

0.892

6"

152

166±0.2

20

0.2

0.6

6.5

1700

430

1.243





*

*

*

*
