Spring coil nylon air hose

Other name: Spiral Nylon hose, Spiral Nylon air hose, Spiral PA hose, PA tube, PA-6 Pneumatic hose, Spiral Pneumatic tube, nylon brake hose, air brake hose

Material: High quality PA, Nylon, Polyamide

Feature: Smooth surface, wear-resistant, high pressure resistance, corrosion resistance, safe and reliable.

Application: Fluid air, water, oil; Air brake systems; Fuel lines; Instrumentation compressed air lines; Low pressure hydraulic lines; widely used for automobiles, machines, etc.

Working temperature: -40~+120°C

Standards:  SAE J844 J1402

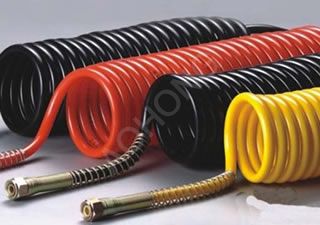

Spring coil nylon air hoseSpring coil nylon air hose
Real product pictureReal product picture
Specification:

Specification

Inner Diameter

Rated Working Pressure

Min bust Pressure

Min bending radius

OD×wall Thickness

Mpa

Mpa

mm

mm

mm

4×0.75

2.5

3.1

9.3

30

4×1

2

4.5

13.5

35

5×1

3

3.4

10.2

20

6×1

4

2.7

8.1

30

6×1.5

3

4.5

8.1

40

6×2

2

6.7

8.1

40

8×1

6

1.9

5.7

50

8×1.5

5

3.1

5.7

50

8×2

4

4.5

5.7

50

9×1.5

6

2.7

5.7

50

10×1

8

1.9

5.7

65

10×1.25

7.5

1.9

5.7

65

10×2

6

3.4

5.7

65

11×1.5

8

2.1

5.7

55

12×1.5

91

1.9

5.7

70

12×2

85

2.7

8.1

70

12.5×12.5

10

1.5

8.1

70

14×1.5

11

1.6

4.8

75

14×2

10

2.1

6.6

80

15×1

13

1

6.6

80

15×1.5

12

1.5

4.5

80

16×2

12

1.9

6.3

130

18×1.5

15

1.2

6.3

130





*

*

*

*
